Make opening and closing your tonneau cover a snap with AutoLöc's Single Motor Pro Series Bolt-On Automated Power Tonneau Cover Kit

INCLUDES:
- Heavy duty 200 lb 8” Stroke Linear Actuator
- Linear Actuator Motor Mounting Install Post Spacer Set Pair

FEATURES:
- Fully Adjustable

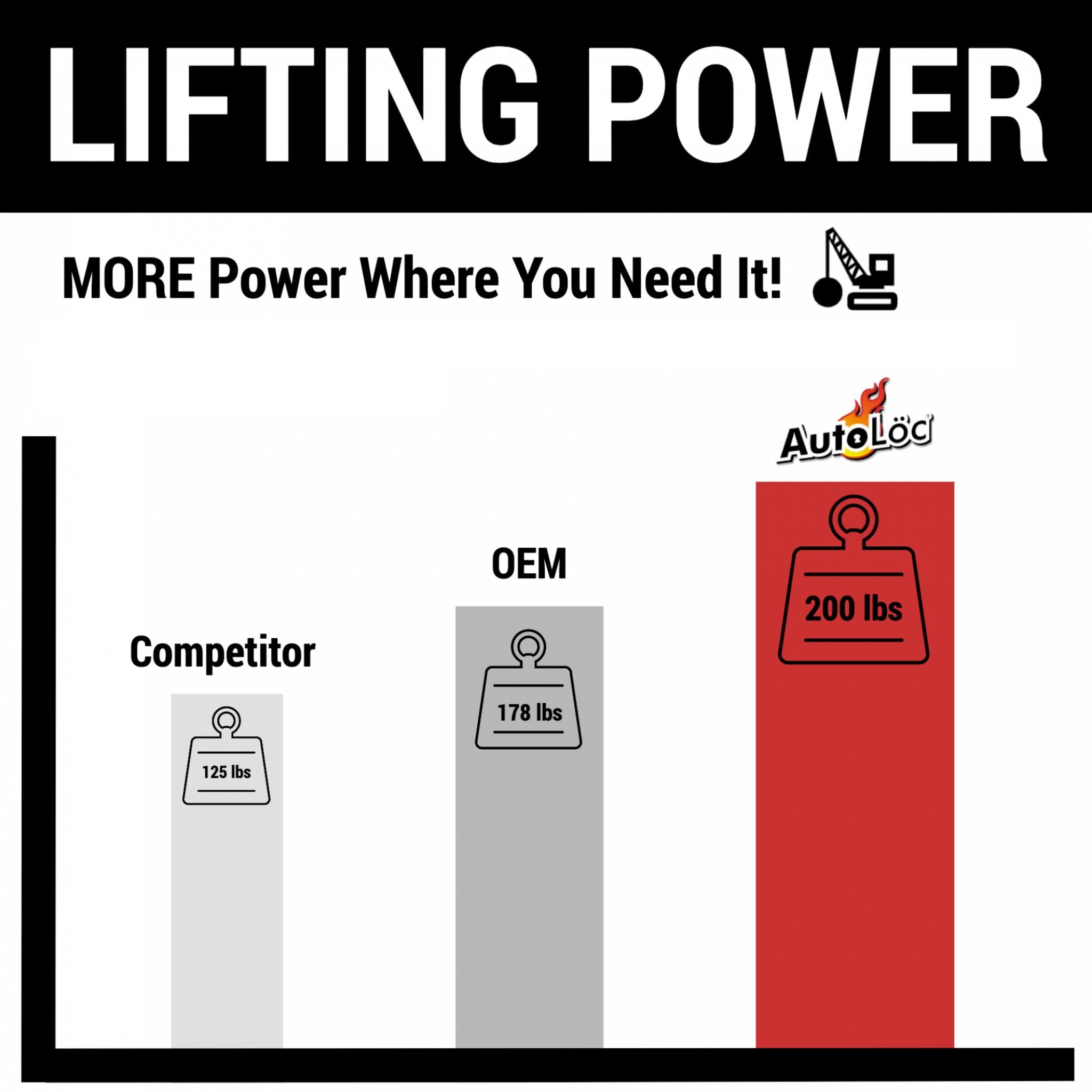

- 200 lb Lift Capacity
- 8 Inch Travel/Stroke
- Heavy Duty High-Torque Screw Drive Motor
- Built In Limit Switch
- Permanently Sealed & Lubricated Assembly
- Steel Body
- Metal Bearing Mount

This Power Actuator kit allows you to easily open and close your tonneau cover with the simple push of a button. Can be operated by interior switch and/or remote control. Will work with any aftermarket or factory remote with available channels. AutoLöc switches and keyless entry remote control systems SOLD SEPARATELY.

AutoLöc's powerful linear actuators include built-in limit switches. The built-in limit switches allow you to program custom run times and push/pull settings when combined with an AutoLöc motor control module. Motor control modules SOLD SEPARATELY.

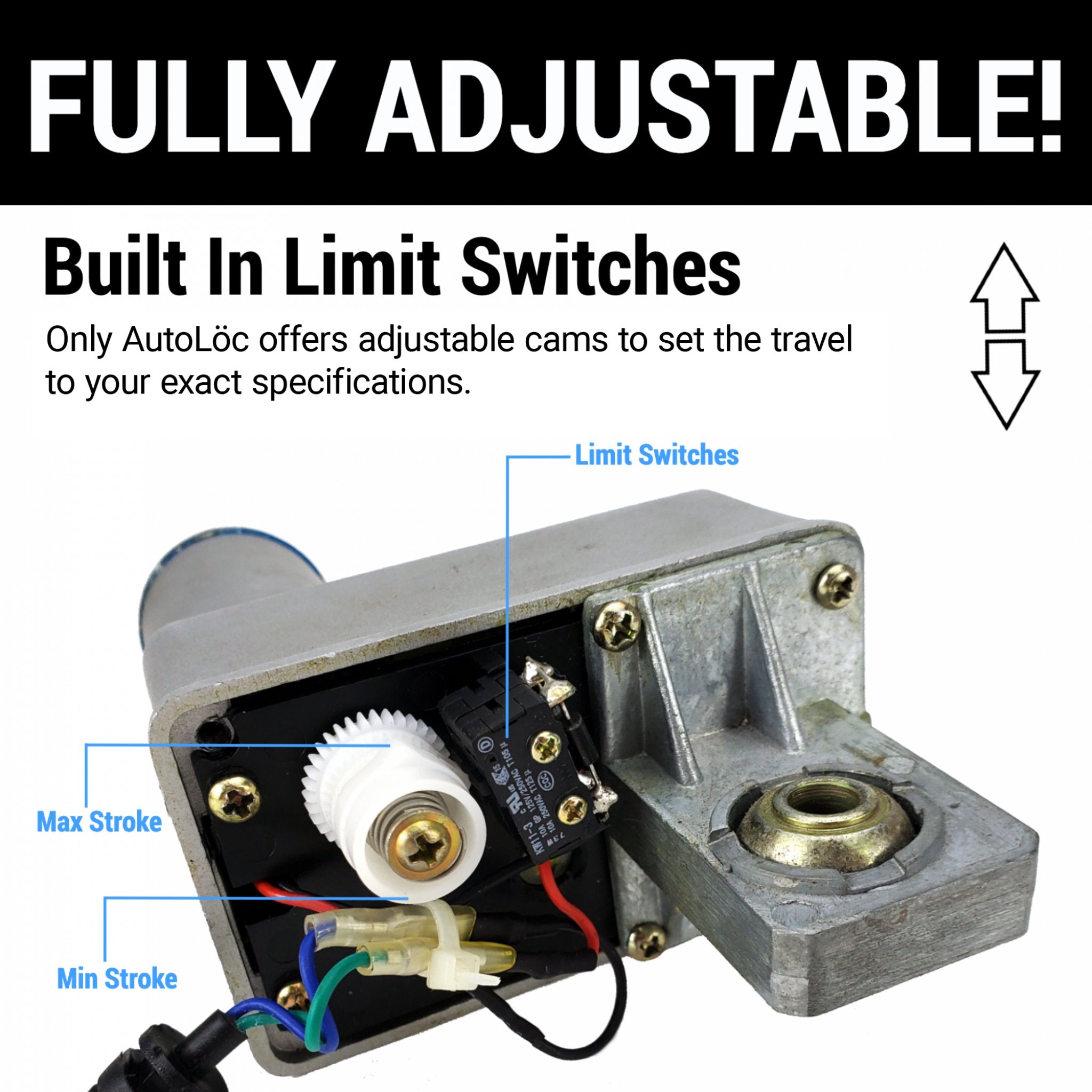

***PRO TIP*** The stroke is adjustable. i.e. Setting the start/stop points on a 8" motor can be limited to 4" by setting these points. They are located below a cap on the bottom. (See Fully Adjustable Image).

* This kit is not recommended for extra heavy, oversized, and/or fiberglass tonneau covers. For heavier applications, AutoLöc recommends a dual motor kit with AutoLöc linear actuator control modules to sync the motors.

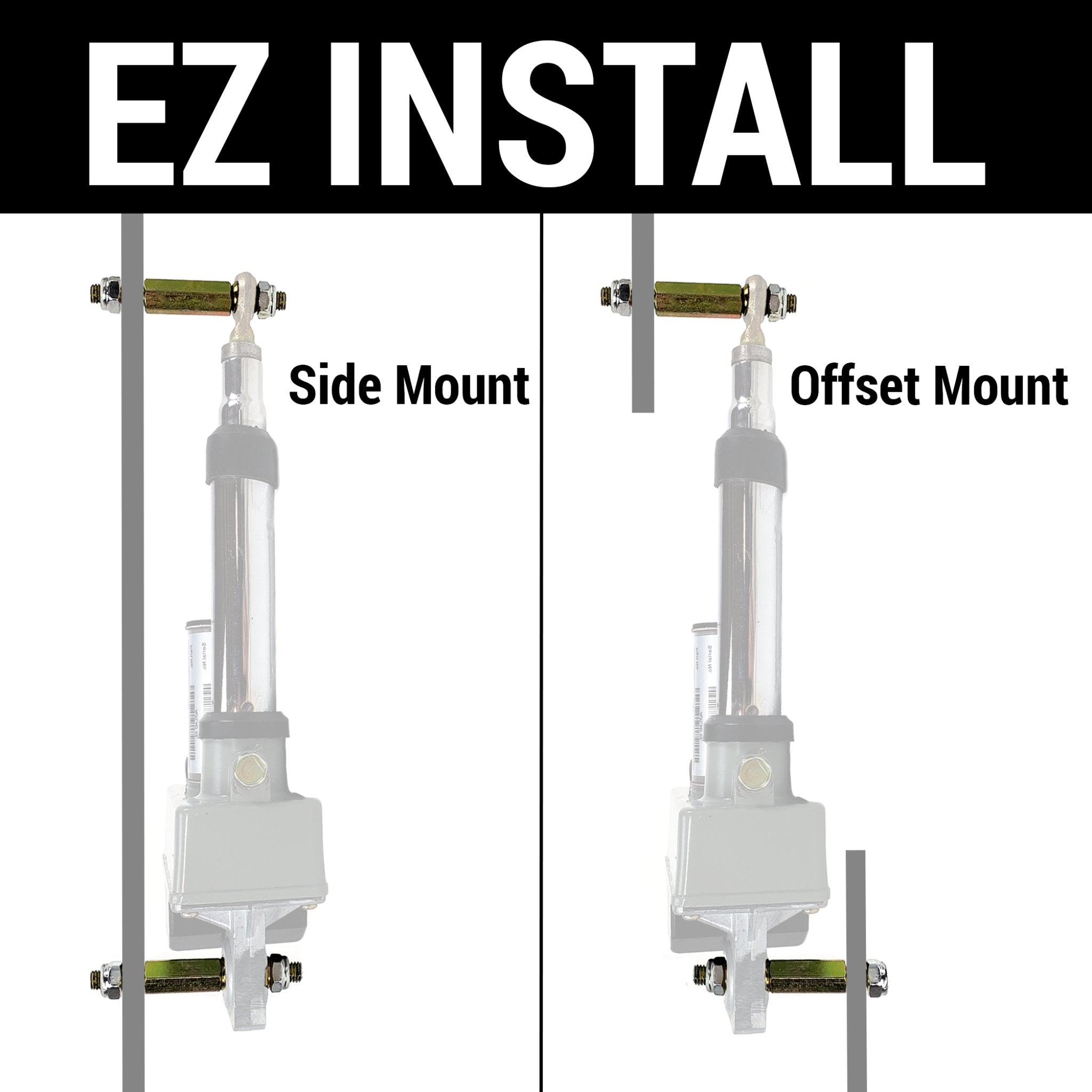

Installation :: Bolt On Design
Compatibility :: Works With Most Tonneau Covers
---------------------- :: Linear Actuator
Max Weight Capacity :: Lifts up to 200 lbs!
Travel/ Stroke :: 8”
Length Collapsed :: 17"
Length Extended :: 25"
Mounting Post :: 1 Pair Included
Instructions :: Detailed Instructions Included
Warranty :: Limited Lifetime Warranty

	Item ID	SKU
	AUTTONNOS	9835
